Reference length system 960

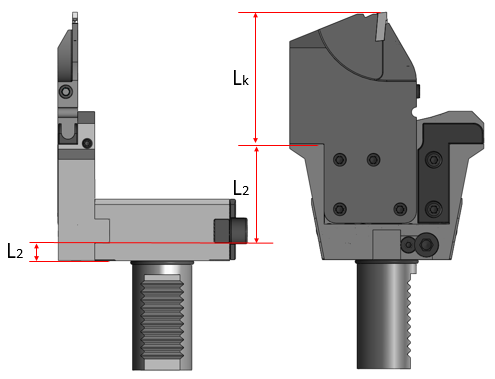

Dimensions for determining the reference length System 960
Total length = L2 (Basic toolholder) + L2 (Grooving toolholder) + Lk (Cassette)
960.HSKT63.C0.00101; interface FN12; L2 = 62 mm
960.VDI25.C0.00101; interface FN12; L2 = 9 mm
960.VDI30.C0.00101; interface FN12; L2 = 9 mm
960.VDI40.C0.00101; interface FN12; L2 = 9 mm
960.VDI50.C0.00101; interface FN12; L2 = 11 mm
960.MAZ40.C0.00101; interface FN12; L2 = 37 mm
960.MAZ40.C0.00201; interface FN12; L2 = 37 mm
960.MAZ40.C0.00301; interface FN12; L2 = 34 mm
960.MAZ40.C0.00401; interface FN12; L2 = 34 mm
960.MAZ50.C0.00101; interface FN12; L2 = 52 mm
960.MAZ00.C0.00101; interface FN12; L2 = 37 mm
960.MAZ00.C0.00201; interface FN12; L2 = 37 mm
960.BMT00.C0.00701; interface FN12; L2 = 34 mm
960.BMT00.C0.00901; interface FN12; L2 = 57 mm
960.BMT00.C0.01301; interface FN12; L2 = 19 mm
960.BMT00.C0.01701; interface FN12; L2 = 9,5 mm
960.BMT32.C0.00101; interface FN12; L2 = 1 mm
960.BMT38.C0.00101; interface FN12; L2 = 9 mm
960.BMT40.C0.00101; interface FN12; L2 = 9 mm
960.BMT42.C0.00101; interface FN12; L2 = 9 mm
960.BMT45.C0.00101; interface FN12; L2 = 9 mm
960.BMT45.C0.00201; interface FN12; L2 = 9 mm
960.BMT55.C0.00101; interface FN12; L2 = 9 mm
960.BMT55.C0.00201; interface FN12; L2 = 9 mm
960.BMT55.C0.00301; interface FN12; L2 = 9 mm
960.BMT55.C0.00401; interface FN12; L2 = 9 mm
960.BMT60.C0.00101; interface FN12; L2 = 9 mm
960.BMT65.C0.00101; interface FN12; L2 = 9 mm
960.BMT65.C0.00201; interface FN12; L2 = 9 mm
960.BMT65.C0.00301; interface FN12; L2 = 13 mm
960.BMT68.C0.00101; interface FN12; L2 = 25 mm
960.BMT75.C0.00101; interface FN12; L2 = 19 mm
960.BMT80.C0.00101; interface FN12; L2 = 10 mm
960.BMT80.C0.00201; interface FN12; L2 = 26 mm
960 Basic toolholder
960.A.0220.0001.IK; interface 220; L2 = 53 mm
960.I.0220.0001.IK; interface 220; L2 = 53 mm
960.A.0.842.0000.IK; interface 0842; L2 = 45,5 mm
960.I.0.842.0001.IK; interface 0842; L2 = 58,5 mm
960.A.0.845.0000.IK; interface 0845; L2 = 49,5 mm
960.I.0.845.0008.IK; interface 0845; L2 = 62,5 mm
960.A.0.845.0002.IK; interface 0845; L2 = 67,5 mm
960.A.0.845.0004.IK; interface 0845; L2 = 85 mm
960.I.0.845.0001.IK; interface 0845; L2 = 62,5 mm
960.I.0.845.0003.IK; interface 0845; L2 = 80,5 mm
960.A.0.845.0010.IK; interface 0845; L2 = 31,6 mm
960 Grooving Toolholder
RNK100.3215.4.21.IK; interface 220; Lk = 36 mm
RNK100.3215.4.22.IK; interface 220; Lk = 36 mm
RNK100.3215.4.23.IK; interface 220; Lk = 36 mm
RNK100.3215.4.24.IK; interface 220; Lk = 36 mm
LNK100.3215.4.21.IK; interface 220; Lk = 36 mm
LNK100.3215.4.22.IK; interface 220; Lk = 36 mm
LNK100.3215.4.23.IK; interface 220; Lk = 36 mm
LNK100.3215.4.24.IK; interface 220; Lk = 36 mm
RNK224.3215.2.01.IK; interface 220; Lk = 31 mm
RNK224.3215.2.02.IK; interface 220; Lk = 31 mm
RNK224.3215.4.03.IK; interface 220; Lk = 31 mm
RNK224.3215.4.04.IK; interface 220; Lk = 31 mm
RNK224.3215.4.05.IK; interface 220; Lk = 31 mm
RNK224.3215.4.06.IK; interface 220; Lk = 31 mm
LNK224.3215.2.01.IK; interface 220; Lk = 31 mm
LNK224.3215.2.02.IK; interface 220; Lk = 31 mm
LNK224.3215.4.03.IK; interface 220; Lk = 31 mm
LNK224.3215.4.04.IK; interface 220; Lk = 31 mm
LNK224.3215.4.05.IK; interface 220; Lk = 31 mm
LNK224.3215.4.06.IK; interface 220; Lk = 31 mm
RNK220.3215.4.03.IK; interface 220; Lk = 38 mm
RNK220.3215.4.04.IK; interface 220; Lk = 38 mm
RNK220.3215.4.05.IK; interface 220; Lk = 38 mm
RNK220.3215.4.06.IK; interface 220; Lk = 38 mm
RNK220.3218.4.13.IK; interface 220; Lk = 32 mm
RNK220.3218.4.14.IK; interface 220; Lk = 32 mm
RNK220.3218.4.15.IK; interface 220; Lk = 32 mm
RNK220.3218.4.16.IK; interface 220; Lk = 32 mm
LNK220.3215.4.03.IK; interface 220; Lk = 38 mm
LNK220.3215.4.04.IK; interface 220; Lk = 38 mm
LNK220.3215.4.05.IK; interface 220; Lk = 38 mm
LNK220.3215.4.06.IK; interface 220; Lk = 38 mm
LNK220.3218.4.13.IK; interface 220; Lk = 32 mm
LNK220.3218.4.14.IK; interface 220; Lk = 32 mm
LNK220.3218.4.15.IK; interface 220; Lk = 32 mm
LNK220.3218.4.16.IK; interface 220; Lk = 32 mm
RNK274.0220.4.04.IK; interface 220; Lk = 29 mm
LNK274.0220.4.04.IK; interface 220; Lk = 29 mm
RNK34T.0220.4.00.IK; interface 220; Lk = 29 mm
RNK34T.0220.4.10.IK; interface 220; Lk = 29 mm
RNK34T.0220.4.20.IK; interface 220; Lk = 29 mm
RNK34T.0220.4.30.IK; interface 220; Lk = 29 mm
RNK34T.0220.4.40.IK; interface 220; Lk = 29 mm
LNK34T.0220.4.00.IK; interface 220; Lk = 29 mm
LNK34T.0220.4.10.IK; interface 220; Lk = 29 mm
LNK34T.0220.4.20.IK; interface 220; Lk = 29 mm
LNK34T.0220.4.30.IK; interface 220; Lk = 29 mm
LNK34T.0220.4.40.IK; interface 220; Lk = 29 mm
RNK360.0220.5.01.IK; interface 220; Lk = 19 mm
RNK360.0220.5.02.IK; interface 220; Lk = 19 mm
RNK360.0220.5.03.IK; interface 220; Lk = 19 mm
RNK360.0220.5.04.IK; interface 220; Lk = 19 mm
LNK360.0220.5.01.IK; interface 220; Lk = 19 mm
LNK360.0220.5.02.IK; interface 220; Lk = 19 mm
LNK360.0220.5.03.IK; interface 220; Lk = 19 mm
LNK360.0220.5.04.IK; interface 220; Lk = 19 mm
RNK368.0220.4.01.IK; interface 220; Lk = 31 mm
RNK368.0220.4.02.IK; interface 220; Lk = 31 mm
LNK368.0220.4.01.IK; interface 220; Lk = 31 mm
LNK368.0220.4.02.IK; interface 220; Lk = 31 mm
RNK356.0220.03.IK; interface 220; Lk = 29 mm
RNK356.0220.05.IK; interface 220; Lk = 29 mm
RNK356.0220.4.23.IK; interface 220; Lk = 29 mm
RNK356.0220.4.25.IK; interface 220; Lk = 29 mm
RNK356.0220.S.4.03.IK; interface 220; Lk = 29 mm
LNK356.0220.03.IK; interface 220; Lk = 29 mm
LNK356.0220.05.IK; interface 220; Lk = 29 mm
LNK356.0220.4.23.IK; interface 220; Lk = 29 mm
LNK356.0220.4.25.IK; interface 220; Lk = 29 mm
LNK356.0220.S.4.03.IK; interface 220; Lk = 29 mm
RNK316.0220.4.03.IK; interface 220; Lk = 26 mm
RNK316.0220.4.05.IK; interface 220; Lk = 26 mm
RNK316.0220.S3.4.03.IK; interface 220; Lk = 26 mm
LNK316.0220.4.03.IK; interface 220; Lk = 26 mm
LNK316.0220.4.05.IK; interface 220; Lk = 26 mm
LNK316.0220.S3.4.03.IK; interface 220; Lk = 26 mm
RNK64T.0220.01.IK; interface 220; Lk = 24 mm
RNK64T.0220.02.IK; interface 220; Lk = 24 mm
LNK64T.0220.01.IK; interface 220; Lk = 24 mm
LNK64T.0220.02.IK; interface 220; Lk = 24 mm
RNK100.0842.16.5.71.IK; interface 0842; Lk = 32 mm
RNK100.0842.17.5.71.IK; interface 0842; Lk = 40 mm
RNK100.0842.18.5.71.IK; interface 0842; Lk = 52 mm
RNK100.0842.23.5.71.IK; interface 0842; Lk = 34 mm
RNK100.0842.24.5.71.IK; interface 0842; Lk = 40 mm
RNK100.0842.16.4.72.IK; interface 0842; Lk = 32 mm
RNK100.0842.23.4.72.IK; interface 0842; Lk = 32 mm
RNK100.0842.24.4.72.IK; interface 0842; Lk = 40 mm
RNK100.0842.23.3.72.IK*; interface 0842; Lk = 32 mm
LNK100.0842.16.5.71.IK; interface 0842; Lk = 32 mm
LNK100.0842.17.5.71.IK; interface 0842; Lk = 40 mm
LNK100.0842.18.5.71.IK; interface 0842; Lk = 52 mm
LNK100.0842.23.5.71.IK; interface 0842; Lk = 32 mm
LNK100.0842.24.5.71.IK; interface 0842; Lk = 40 mm
LNK100.0842.16.4.72.IK; interface 0842; Lk = 32 mm
LNK100.0842.23.4.72.IK; interface 0842; Lk = 32 mm
LNK100.0842.24.4.72.IK; interface 0842; Lk = 40 mm
LNK100.0842.23.3.72.IK*; interface 0842; Lk = 32 mm
RNK100.0842.16.4.73.IK; interface 0842; Lk = 32 mm
RNK100.0842.23.4.73.IK; interface 0842; Lk = 32 mm
RNK100.0842.26.4.73.IK; interface 0842; Lk = 32 mm
RNK100.0842.27.4.73.IK; interface 0842; Lk = 40 mm
RNK100.0842.34.4.73.IK; interface 0842; Lk = 40 mm
RNK100.0842.34.4.74.IK*; interface 0842; Lk = 40 mm
RNK100.0842.34.3.73.IK*; interface 0842; Lk = 40 mm
LNK100.0842.16.4.73.IK; interface 0842; Lk = 32 mm
LNK100.0842.23.4.73.IK; interface 0842; Lk = 32 mm
LNK100.0842.26.4.73.IK; interface 0842; Lk = 32 mm
LNK100.0842.27.4.73.IK; interface 0842; Lk = 40 mm
LNK100.0842.34.4.73.IK; interface 0842; Lk = 40 mm
LNK100.0842.34.4.74.IK; interface 0842; Lk = 40 mm
LNK100.0842.34.3.73.IK*; interface 0842; Lk = 40 mm
LNK100.0842.34.3.74.IK*; interface 0842; Lk = 40 mm
RNK101.0842.16.5.712.IK; interface 0842; Lk = 32 mm
RNK101.0842.16.5.716.IK; interface 0842; Lk = 32 mm
LNK101.0842.16.5.712.IK; interface 0842; Lk = 32 mm
LNK101.0842.16.5.716.IK; interface 0842; Lk = 32 mm
RNK224.0842.18.5.71.IK; interface 0842; Lk = 32 mm
RNK224.0842.18.4.72.IK; interface 0842; Lk = 32 mm
RNK224.0842.18.4.73.IK; interface 0842; Lk = 32 mm
LNK224.0842.18.5.71.IK; interface 0842; Lk = 32 mm
LNK224.0842.18.4.72.IK; interface 0842; Lk = 32 mm
LNK224.0842.18.4.73.IK; interface 0842; Lk = 32 mm
RK842.SDJCR.07.1.2.IK; interface 0842; Lk = 32 mm
RK842.SVJCR.11.1.2.IK; interface 0842; Lk = 32 mm
LK842.SDJCL.07.1.2.IK; interface 0842; Lk = 32 mm
LK842.SVJCL.11.1.2.IK; interface 0842; Lk = 32 mm
RNK368.0842.4.01.IK; interface 0842; Lk = 32 mm
RNK368.0842.4.02.IK; interface 0842; Lk = 32 mm
LNK368.0842.4.01.IK; interface 0842; Lk = 32 mm
LNK368.0842.4.02.IK; interface 0842; Lk = 32 mm
RNK100.0845.17.5.71.IK; interface 0845; Lk = 38 mm
RNK100.0845.22.4.72.IK; interface 0845; Lk = 38 mm
RNK100.0845.26.4.73.IK; interface 0845; Lk = 38 mm
RNK100.0845.34.4.73.IK; interface 0845; Lk = 46 mm
RNK100.0845.36.4.73.IK; interface 0845; Lk = 66,5 mm
RNK100.0845.42.4.73.IK; interface 0845; Lk = 54 mm
RNK100.0845.34.4.74.IK; interface 0845; Lk = 46 mm
RNK100.0845.42.4.74.IK; interface 0845; Lk = 54 mm
RNK100.0845.46.4.74.IK; interface 0845; Lk = 57 mm
RNK100.0845.55.4.74.IK; interface 0845; Lk = 66 mm
RNK100.0845.22.3.72.IK*; interface 0845; Lk = 38 mm
RNK100.0845.34.3.73.IK*; interface 0845; Lk = 40 mm
RNK100.0845.42.3.74.IK*; interface 0845; Lk = 54 mm
LNK100.0845.22.4.72.IK; interface 0845; Lk = 38 mm
LNK100.0845.26.4.73.IK; interface 0845; Lk = 38 mm
LNK100.0845.34.4.73.IK; interface 0845; Lk = 46 mm
LNK100.0845.36.4.73.IK; interface 0845; Lk = 66,5 mm
LNK100.0845.42.4.73.IK; interface 0845; Lk = 54 mm
LNK100.0845.34.4.74.IK; interface 0845; Lk = 46 mm
LNK100.0845.42.4.74.IK; interface 0845; Lk = 54 mm
LNK100.0845.46.4.74.IK; interface 0845; Lk = 57 mm
LNK100.0845.55.4.74.IK; interface 0845; Lk = 66 mm
LNK100.0845.34.3.73.IK*; interface 0845; Lk = 46 mm
LNK100.0845.42.3.74.IK*; interface 0845; Lk = 54 mm
RNK101.0845.17.5.712.IK; interface 0845; Lk = 38 mm
RNK101.0845.17.5.716.IK; interface 0845; Lk = 38 mm
LNK101.0845.17.5.712.IK; interface 0845; Lk = 38 mm
LNK101.0845.17.5.716.IK; interface 0845; Lk = 38 mm
RNK224.0845.18.5.71.IK; interface 0845; Lk = 38 mm
RNK224.0845.18.4.72.IK; interface 0845; Lk = 38 mm
RNK224.0845.18.4.73.IK; interface 0845; Lk = 38 mm
LNK224.0845.18.5.71.IK; interface 0845; Lk = 38 mm
LNK224.0845.18.4.72.IK; interface 0845; Lk = 38 mm
LNK224.0845.18.4.73.IK; interface 0845; Lk = 38 mm
RNK229.0845.25.4.73.IK; interface 0845; Lk = 41 mm
RNK229.0845.25.4.74.IK; interface 0845; Lk = 41 mm
RNK229.0845.25.4.75.IK; interface 0845; Lk = 41 mm
RNK229.0845.25.4.76.IK; interface 0845; Lk = 41 mm
LNK229.0845.25.4.73.IK; interface 0845; Lk = 41 mm
LNK229.0845.25.4.74.IK; interface 0845; Lk = 41 mm
LNK229.0845.25.4.75.IK; interface 0845; Lk = 41 mm
LNK229.0845.25.4.76.IK; interface 0845; Lk = 41 mm
RK845.SDJCR.07.1.2.IK; interface 0845; Lk = 38 mm
RK845.SVJCR.11.1.2.IK; interface 0845; Lk = 38 mm
LK845.SDJCL.07.1.2.IK; interface 0845; Lk = 38 mm
LK845.SVJCL.11.1.2.IK; interface 0845; Lk = 38 mm
Cassettes
Don't fill this field!
